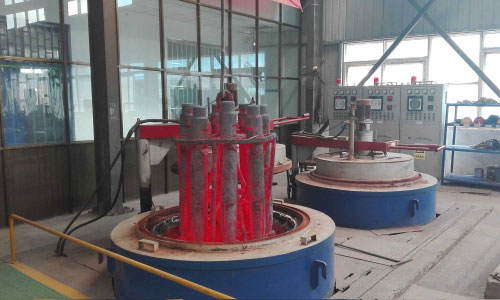

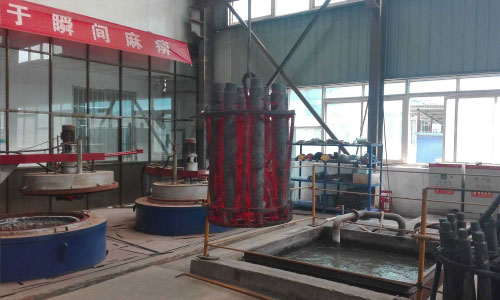

Shaft parts pit quenching furnace

  • Processing capacity:200-15000Kg
  • Rated temperature:900-1250 ℃
  • Application:forging parts, casted parts,pressure vessel,Train railway,special steel plate,shaft,rotary parts,centrifugal fan impeller
[email protected]

1. Introduction

Shaft parts pit quenching furnace is non-standard products ,which is specially designed according to user requirements , mainly used for workpiece quenching, heating treatment on machining, aluminum industry and others.

2. Structure

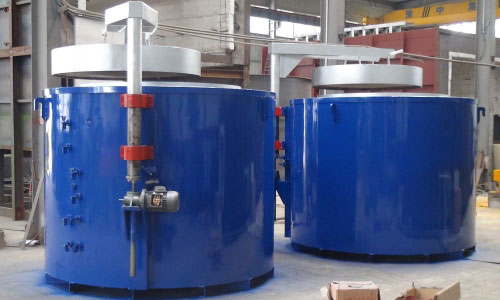

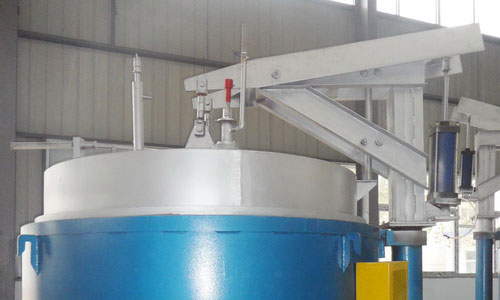

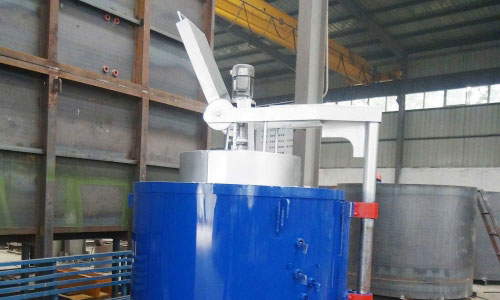

It consists of furnace shell,furnace lining,heating element,furnace cover,furnace lifting device,intelligent electronic control system and son on.

3. Features

1).If it is damaged by mechanical collision, it only needs local modification, repairing, replacement, and can be put into application after repaired without heating the empty furnace.

2).The refractory fiber is ceramic fiber block, with good heat preservation effect, fast temperature rising, it can save energy by 20% - 30% compared with brick lining.

3).The service life is long

4).Seismic resistance performance is good.

5).Good temperature controllability, temperature control precision can be up to±1 ℃

6).Furnace internal temperature partition piecewise control can be realized.

7).Good corrosion resistance, especially effective for sulfur-containing atmosphere and those that is polluted by sulfur-containing substance.

For quenching treatment of shaft parts and accessories,pressure vessel,standard parts,hardwares and so on.



Type No. Rated Power  (Kw) Rated Temperature (℃) Rated Voltage (V) Phase   (P) Every area power(Kw) Heating area (zone) Theory loading quantity (Kg) Working area size diameter*length (mm)
RJ3-300-9 300 950 380 3 100 3 4.5 ф1500x3000
RJ3-360-9 360 950 380 3 90 4 6 ф1500Xx4000
RJ3-450-9 450 950 380 3 75 6 5 ф1200x7500
RJ3-450-9 450 950 380 3 56 8 5 ф1000x8000
RJ3-720-9 720 950 380 3 120 6 8 ф1700x7000

Please note:the above sizes are standard products ,we can also provide customized products according to customers' requests.
