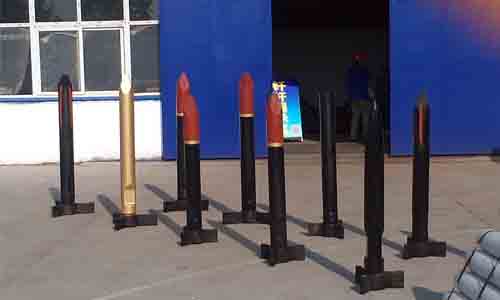

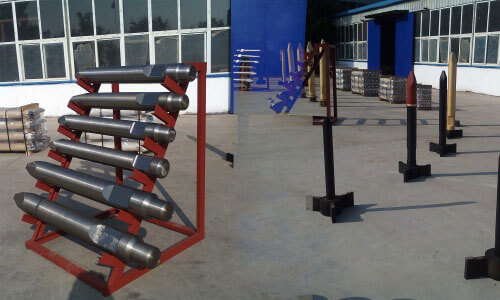

Hot sale crusher parts chisel tool

  • Specification：SB-40,SB-50,SB-81N,SAGA20,SAGA40S
  • Application：Mine digging,civil foundation,broken stone
  • Length：680-1200mm
  • Diameter：68-135mm
Live Chat Leave Message
[email protected]

Introduction:

Crusher parts chisel tool belongs to consumables,and its application is wide.Using different crushers, the size of the drill rod and the tail shape is also different.Excellent crusher parts chisel tool has high wear resistance, high strength, high hardness.In order to meet customer demand, our company developed the different materials of drill rod,our company's hot sale products are N.P.K,MIT SUBISH,DONG GUANG,MSB.etc.

Features:

High strength,hardenss,wear-resistance

The hammer breaker rod is processed with special heat treatment to ensure the breaker rod has enough hardness and toughness .

Extend its using life 10%-15% than normal drill rod

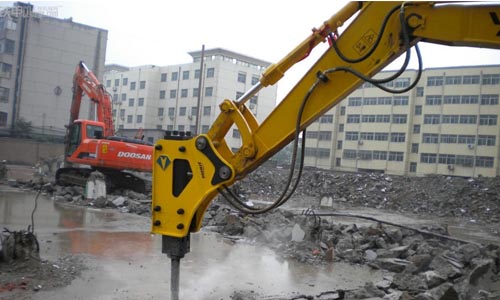

Application range of such chisel tool  is wide, including road construction and maintenance, housing demolition, the tunnel digging, and so on.

It is suitable for crusher brands: SOOSNA, FURUKAWA, GENERAL BREAKER HANWOO, KOKU, etc.



Crusher name Drill rod type Diameter(mm) Length(mm)   Crusher name Drill rod type Diameter(mm) Length(mm)
N.P.K H-7X 106 900   MSB SAGA 20 48 500
H-8XA 116 1000   SAGA 30 62 580
H-9X 115 1000   SAGA 40 68 600
H-10X 126 1100   SAGA 50 68 697
H-10XB/10XE 126 1100   SAGA 120 98 950
H-11X/14X 140 1250   SAGA 200 135 1200
H-12X 136 1200   SAGA 350 153 1400
H-16X 146 1300   MS 200 70 680
H-18X 146 1400   MS 250 75 730
H-20X 156 1400   MS 300 85 790
H-25X 165 1450   MS 400 95 905
E-12X 126 1100   MIT SUBISH MKB60M 38 400
E-15X 136 1200   MKB100M 45 450
E-18X 146 1300   MKB120M 55 520
E-106 41 410   MKB150M 70 600
E-200 42 480   MKB300M 80 750
E-201 50 510   MKB500N 100 900
E-202 57 580   MKB900N 45 1000
E-203 66 740   MKB1200N 120 1150
E-204 76 800   MKB1500N 135 1150
E-205 86 890   MKB1800V 145 1200
E-208 116 1160   MKB2100V 150 1280
E-210 126 1100   MKB2500V 160 1350
E-212 126 1100   MKB3000V 165 1500
E-213 136 1200   MKB4000V 180 1600
E-215 140 1200   MKB6000V 200 1750
E-216 146 1300   MKB7000V 220 1800
E-218 146 1300   MKB60M 38 400
E-220 156 1400   MKB100M 45 450
E-224 156 1450   MKB120M 45 520
E-225 165 1520   MKB150M 55 600
E-240 184 1740   MKB300M 70 750
DONGGUANG SB 300 53 650   MKB500N 80 900
SB 400 68 700   MKB900N 100 1000
SB 450 85 850   MKB1200N 120 1150
SB 500 100 1000   MKB1500N 135 1150
SB 600 125 1150
SB 810 140 1300
SB 1210 155 1350
