Continuous Heat Treatment Production Line

  • Specification:TLHT
  • Processing capacity:max 1000kg/h
  • Rated temperature:950℃/700℃
  • Application:Quenching and tempering
[email protected]

Characteristics of equipment structure:

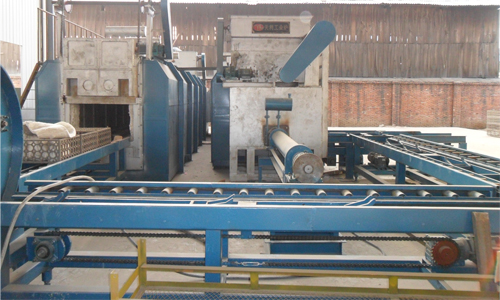

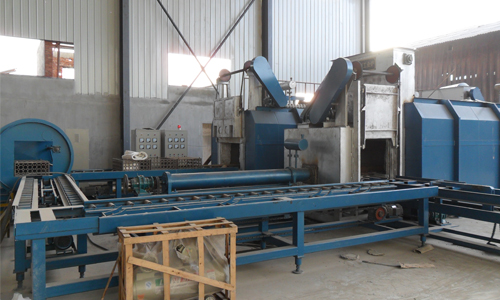

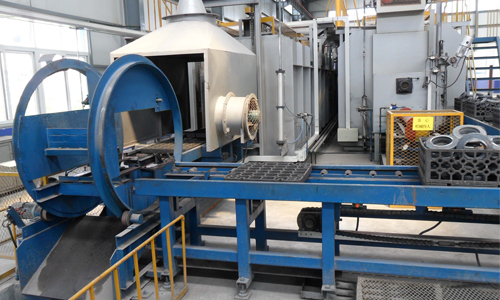

This heat treatment line consists of loading and unloading platform, heating furnace system, quenching furnace system, rapid cooling chamber (quenching oil removal chamber and exhaust) system, tempering furnace, unloading air cooling chamber, temperature and mechanical action control system, emergency work station, hydraulic pneumatic system, atmosphere protection system and charging tray.

This production line is mainly used for quenching and tempering heat treatment for steel ball, casting parts, auto parts, gear, and other standard parts with various materials.

 Features:

1). This production line can be used for isothermal normalizing and quenching with tempering.
2). Protective atmosphere can be supplied into the heating furnace to reduce the workpiece oxidation.
3). Cold air, hot air, and different mixed temperature of hot and cold air can be used to cool the workpiece within the cooling chamber .
4). the production line is configured with reliable transmission device, the whole line is set with PLC programming and full automatic control, with fault self-diagnosis function, which is a kind of highly reliable, intelligent automatic heat treatment production line.




This production line is mainly used for quenching and tempering heat treatment for steel ball, casting parts, auto parts, gear, and other standard parts with various materials.



Model

Production capacity

(kg/h)

Rated power(kw)

Rated temperature(℃)

Working sizes(L*W*H)

Total power

(kw)

Heating furnace

Tempering furnace

Heating furnace

Tempering furnace

Heating furnace

Tempering furnace

TLHT-350

350

180

120

950

700

5200x600x400

6000x600x400

400

TLHT-500

500

260

170

950

700

5800x700x500

6500x700x500

560

TLHT-700

700

320

210

950

700

6500x800x600

7600x800x600

650

TLHT-1000

1000

400

240

950

700

7800x850x700

8900x850x700

760
